Step into the future of SOLAR technology with
Solar-Powered Glasses
without compromising on style or comfort.

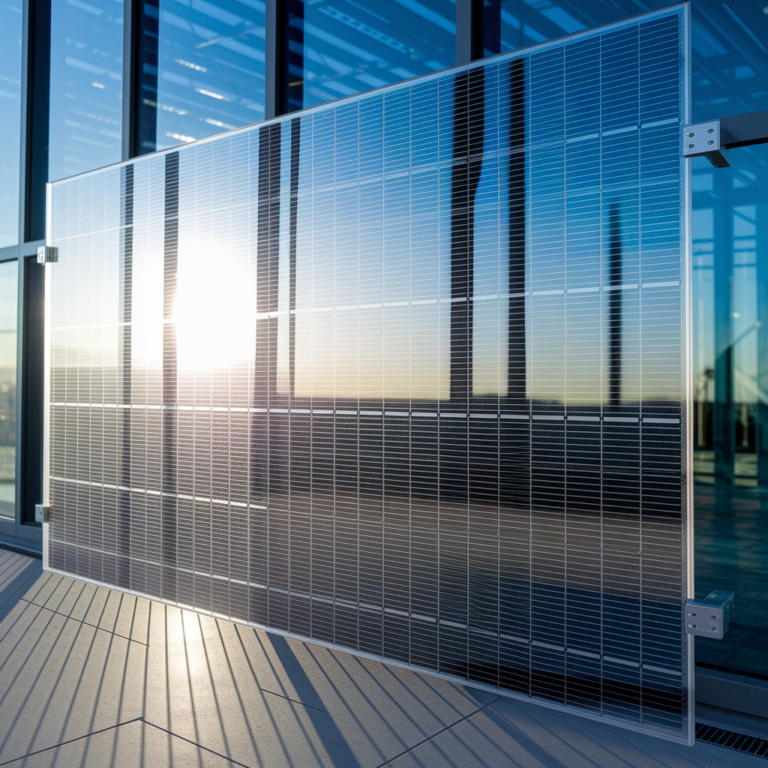

Transparent PV Glass offers a sleek, modern look while maintaining a natural appearance, seamlessly blending into any design. This innovative glass generates clean energy without compromising on clarity or aesthetics, making it the perfect choice for contemporary spaces.
ELECTRICAL SPECIFICATION
| Model | FR-T1-20 | FR-T1-40 | FR-T2-20 | FR-T2-40 | FR-T4-20 | FR-T4-40 | |
|---|---|---|---|---|---|---|---|
| Transmittance | / | 20% | 40% | 20% | 40% | 20% | 40% |
| Nominal power | Pmpp/W | 85 | 60 | 85 | 60 | 80 | 60 |
| Power tolerance | / | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Short circuit current | Isc/A | 0.95 | 0.71 | 0.95 | 0.71 | 0.93 | 0.69 |
| Open circuit voltage | Voc/V | 122.8 | 122.8 | 122.8 | 122.8 | 122.8 | 122.8 |
| Current at max power | Impp/A | 0.88 | 0.66 | 0.88 | 0.66 | 0.86 | 0.64 |
| Voltage at max power | Vmpp/V | 98.5 | 94.3 | 98.5 | 94.3 | 98.2 | 93.7 |
MECHANICAL DATA
| Model | FR-T1 | FR-T2 | FR-T4 |
|---|---|---|---|
| Size | 1200×600×16.2mm | 1200×600×18.2mm | 1200×600×22.2mm |
| Wight | 29Kg | 33Kg | 40Kg |
| Area | 0.72m² | 0.72m² | 0.72m² |
| Structure | 5mm+3.2mm+5mm | 6mm+3.2mm+6mm | 8mm+3.2mm+8mm |
| Junction Box | Side, cable 2.5mm²,650±10mm | ||
| Connectors | MC4 | ||
